Neunaber Illumine Reverb Guitar Effects Pedal

Neunaber Illumine Reverb Guitar Effects Pedal

---

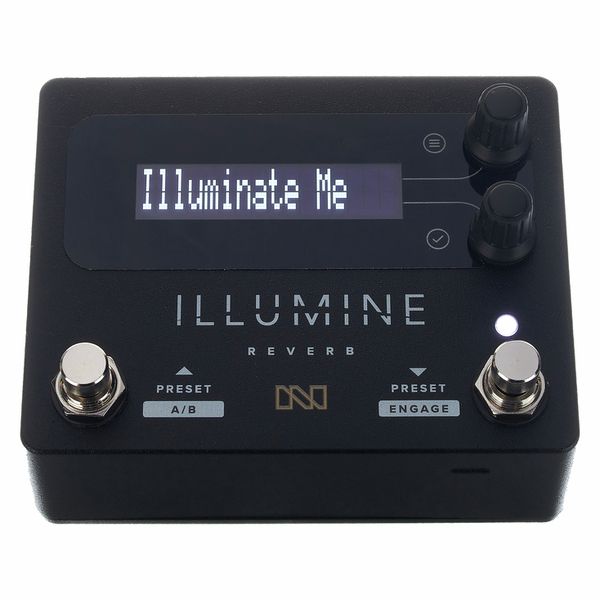

ILLUMINE packs 20 studio-quality reverbs, 50 presets, MIDI and powerful expression control in a low-power, pedalboard-friendly package with top jacks. Regardless of your instrument or style of music, ILLUMINE has the flexibility and tone you desire. Your creativity is the only limit.

---

FEATURES

• 20 stellar stereo reverb effects (with v2 firmware) covers all of your reverb needs.
• 50 professionally-crafted factory presets for superb tones right out of the box.
• 50 user presets to customize and save your favorite settings.
• MIDI input & thru/out. Controller mode replaces a simple MIDI controller.
• Powerful, flexible expression control engine. Use an external expression pedal or the built-in A/B switch with adjustable transition times.
• Analog dry signal for low noise and zero latency maintains the integrity of your source tone.
• Adjustable gain structure works with instrument or line-level inputs.
• High contrast, wide viewing angle display is easy to read from a distance.

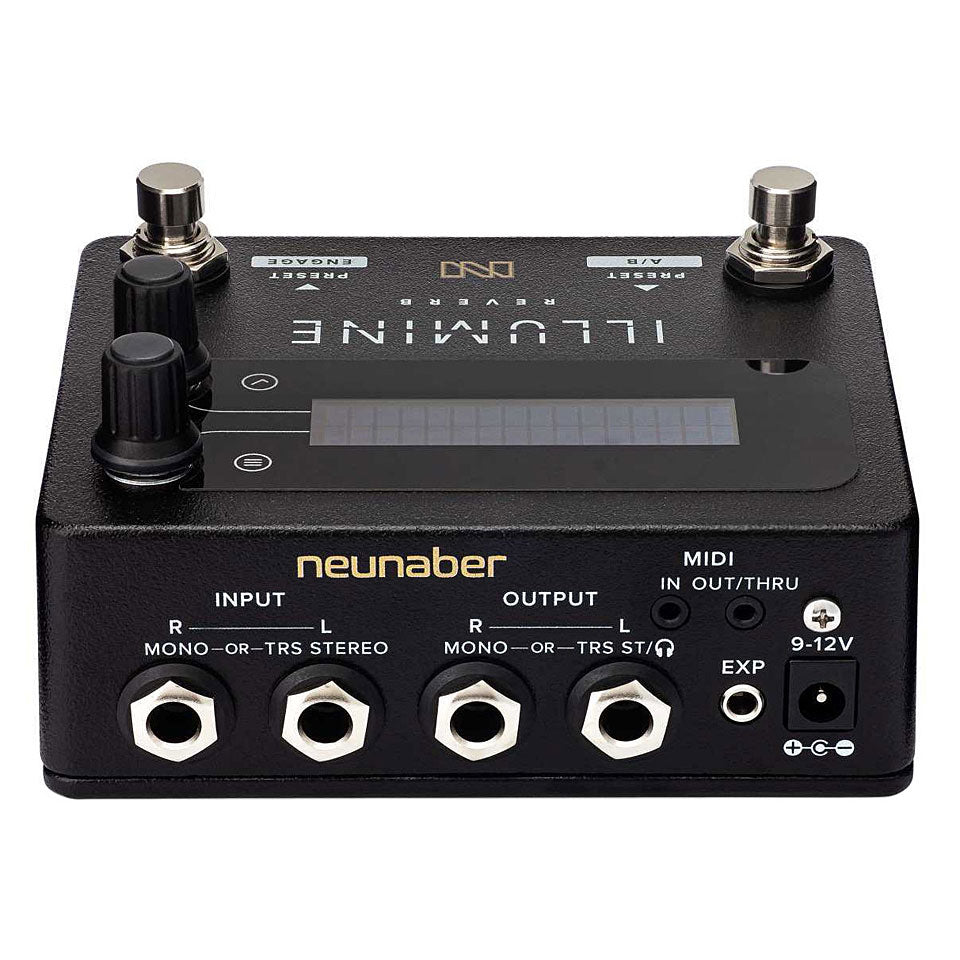

• Small footprint with top jacks, ILLUMINE is easy to incorporate into your pedalboard.
• Power with a standard 9V @ 100mA pedal power supply (not included). No need to run a separate power adapter or free up a high-current power port.
• Manufactured locally in Orange County, California. Family owned and operated, Neunaber Audio is dedicated to bringing you the highest quality audio effects on the market.

---

SPECIFICATIONS

• Electrical
• Input level
• -10 dBV, instrument / consumer line level
• Input impedance
• 500 kΩ mono | 1 MΩ stereo
• Signal-to-Noise Ratio, A-weighted, engaged or trails bypass
• 113 dB mono | 110 dB stereo
• Total harmonic distortion
• < 0.005%
• Power
• Supply Voltage
• regulated 9 V - 12 V DC
• Current consumption
• 85 mA typical
• Recommended supply current
• 100 mA or greater
• Connector
• center-negative, 5.5 mm OD x 2.1 mm ID
• Physical
• Dimensions
• 121 x 99 x 62 mm / 4.8 x 3.9 x 2.6 in

---
